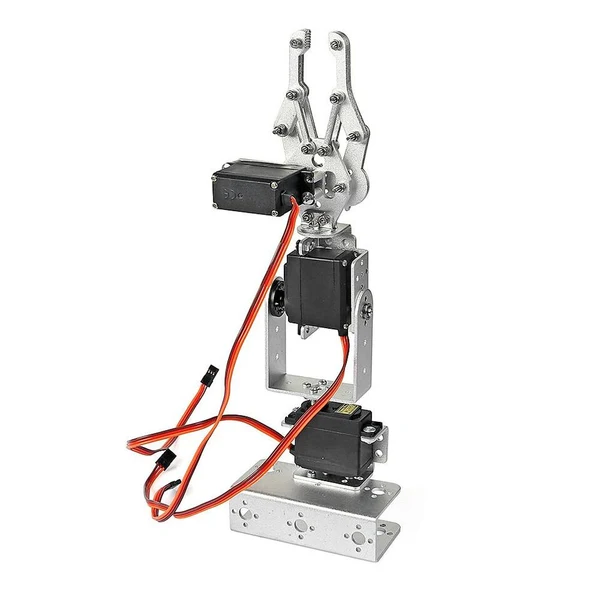

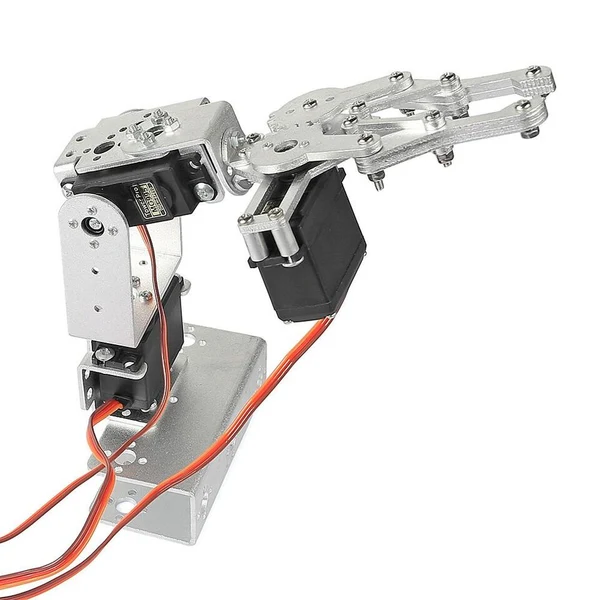

DIY 3DOF 3-Axis Control Palletizing Robot Arm Model with Servo Arm Plate (not including MG995 servo)

The DIY 3-Axis Control Palletizing Robot Arm is a 3-DOF manipulator kit for Arduino UNO, MEGA2560 and smart robot car builds. Its vertical arm and back-and-forth reach let you grab and move small objects, which makes it a good fit for robotics learners and DIY robot car projects.

Key Features

• 3-DOF manipulator: arm moves up and down and back and forth
• U-type waist bracket mounts directly on a robot car or any desktop platform
• Metal clamp claw opened and closed by a servo
• Suited to vehicle-mounted manipulator robot cars and ball-grabbing projects
• Supports 180-degree steering joints

Specifications

• Turning radius: 240 mm
• Height: 290 mm (gripper closed)
• Front clamp maximum opening: 55 mm
• Servos required: 3 metal servos (MG995 not included)

What’s in the Box

• 2 x multi-functional servo bracket
• 1 x long U-type servo bracket
• 1 x L-type servo bracket
• 1 x U-type robot waist bracket
• 1 x aluminium clamp claw
• 3 x metal servo arm plate
• 1 x miniature ball radial bearing
• 1 x screw and screw cap set

Note: This is an unassembled kit. Servos are not included.
